Talon Systems — Industrial Paper Sheeter & Packaging Machinery Manufacturer in Turkey

35 Years of Material Mastery
Deep knowledge of paperboard grades informs every engineering decision we make.
Field-Tested Engineering
Born on the factory floor — we operated machines before we built them.
Human-First Interface
Intuitive HMI that operators master in hours, not days. Designed for the floor.
Integrated Solutions
End-to-end toolkit covering sheeting, stacking, and secure pallet wrapping.
Our Machines

Built for the production floor.

Sheeter / Cutter
Traverse X-145 Sheeter

TRAVERSE X-145

High-speed rotary sheeter engineered for paper and paperboard. Precision cutting, human-first interface, and field-tested reliability.
View Product
Stretch Wrapper
Wrapper Z1 Stretch Wrapper

WRAPPER Z1

Automated pallet stretch wrapper with smart tension control and an intuitive HMI. Keeps your packaged goods secure from floor to final destination.
View Product
About Talon Systems

Built by operators,
for operators.

Talon Systems was born from 35 years of hands-on mastery in the paper and cardboard industry. We didn't just study machines — we ran them. That decade on the production floor gave us insight that no engineering textbook could.

Today, we use that deep material knowledge to engineer superior mechanical solutions that eliminate common production bottlenecks — replacing cluttered legacy systems with a human-first approach.

35
Years in the Industry
3
Countries of Operation
10+
Years Operating Machinery
24h
Installation Turnaround
What Our Clients Say

Real results on the factory floor.

"

We received the machine at our facilities and were prepared for days of downtime, but the installation was seamless. The team had the machine fully set up in just 24 hours, and our operators were confident enough to run full production by the next day because of the intuitive and easy to operate HMI interface.

P
Production Manager
Packaging Manufacturer — TRAVERSE X-145 Customer
"

After the installation of the TRAVERSE X-145 machine, we hit a technical issue after the initial setup. We reached out and had an expert response within the hour. The support team was incredibly friendly and walked us through the solution immediately. Having that kind of high-level technical backup gives us total confidence in operating the machine.

O
Operations Director
Printing House — TRAVERSE X-145 Customer

Ready to upgrade your production line?

Talk to our engineering team about the right solution for your operation — or request the TRAVERSE X-145 technical catalogue.

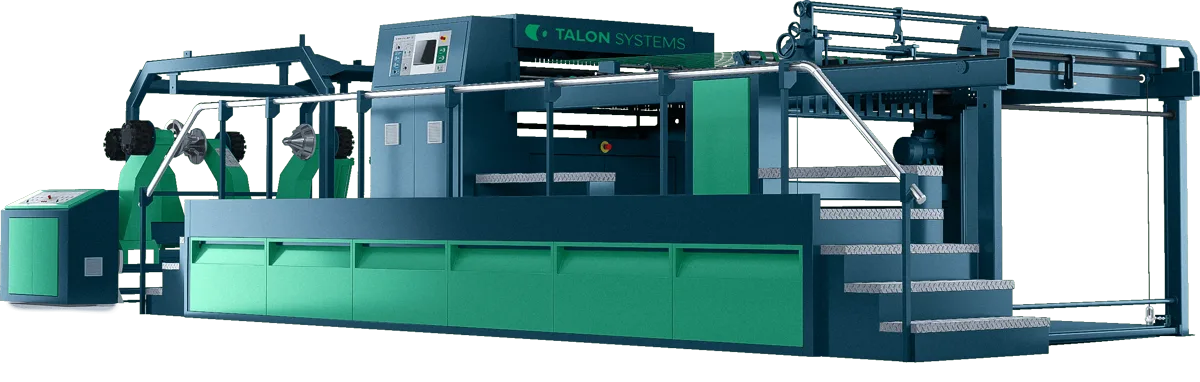

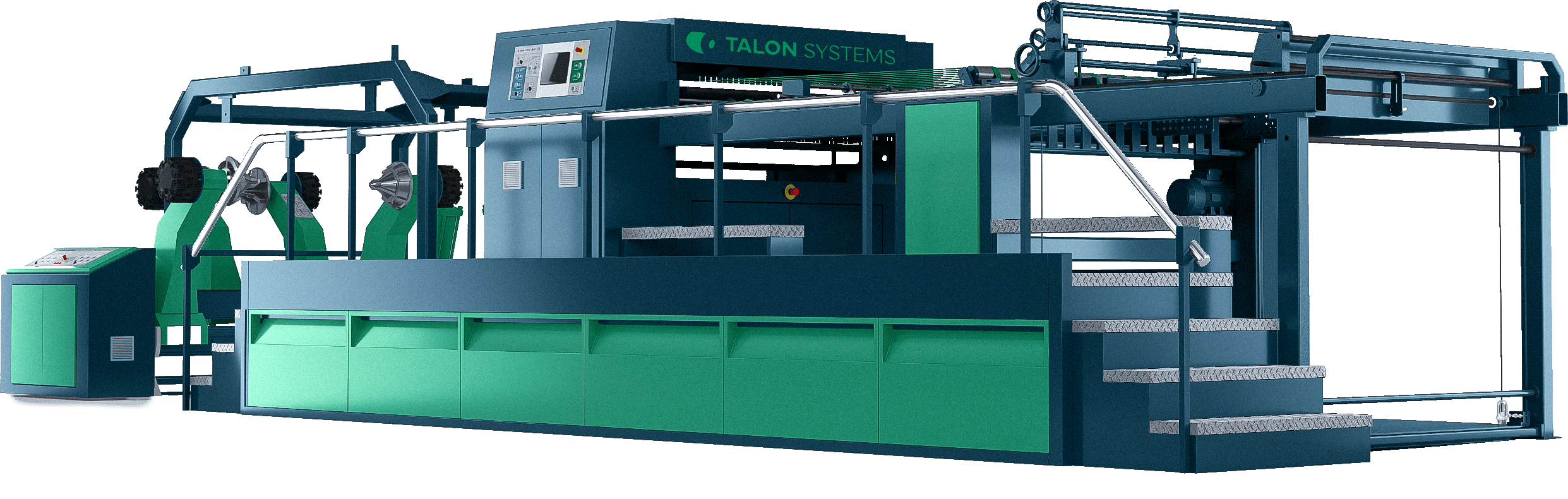

High-Precision Sheeter

TRAVERSE
X-145

Industrial-grade rotary sheeter built from 35 years of paperboard material knowledge and over a decade on the production floor. Every mechanical detail has been engineered to eliminate the frustrations traditional machines leave behind.

Traverse X-145 Sheeter
Scroll to Explore
Why Traverse X-145

Engineering that
solves real problems.

After a decade running production machinery, we identified every mechanical 'bad point' and engineered them out. The Traverse X-145 is the machine we always wished we had.

01

Material-Informed Cutting

With 35 years of trading paperboard across grades and markets, our cutting geometry and feed systems are designed around how different materials actually behave — not just what specs say.
02

Human-First HMI Interface

We replaced cluttered legacy control panels with an intuitive touchscreen interface. Operators are running full production by day two — without lengthy training programs.
03

24-Hour Installation

Our installation process is designed for minimal disruption. Customers report going from delivery to full production runs in under 24 hours.
04

Rapid Technical Support

When you hit a technical issue, you reach an expert within the hour. Our support team has operated the same machines — they know every problem and every fix.
05

CE Certified — Made in Turkey

Every machine is CE certified and manufactured to the highest standards. Built in our Turkish facility with full traceability on every component.
Technical Specifications

Built to perform.

Capacity
Max Roll Width
1,500 mm (max cut 1,440 mm)
Capacity
Max Roll Diameter
2,000 mm
Capacity
Max Roll Weight
2,000 kg
Performance
Max Machine Speed
Up to 300 m/min
Performance
Max Cutting Speed
300 cuts/min
Cutting
Sheet Length Range
400 – 1,650 mm
Cutting
Cutting Accuracy
±0.15% of format length
Materials
Paper GSM Range
40 – 450 g/m²
Materials
Material Types
Paper, Kraft, Duplex Board, Film
Feed
Unwind Stations
2 — Shaftless
Control
Control System
PLC + HMI Touchscreen
Electrical
Power Supply
400V / 50A / 3-Phase
Electrical
Power Consumption
~25 kW
Dimensions
Machine Dimensions
10,030 × 3,065 × 2,020 mm
Dimensions
Machine Weight (Max)
6,500 kg
Compliance
Certification
CE Certified — Made in Turkey

* Full technical specifications available in the product catalogue. Request below.

Talon Systems
TRAVERSE
X-145
Technical Catalogue & Specifications
2025 Edition
Traverse X-145 Cover
PDF Catalogue — Free Download
Technical Catalogue

Get the full
spec sheet.

Fill in your details below to receive instant access to the TRAVERSE X-145 technical catalogue, including full specifications, dimensions, and configuration options.

By submitting, you agree to be contacted by Talon Systems regarding your request.

✓
Catalogue Downloading!

Thank you. Your download should start automatically. Our team may follow up with you shortly.

Ready to discuss your requirements?

Our engineering team is ready to help you find the right configuration for your production line.

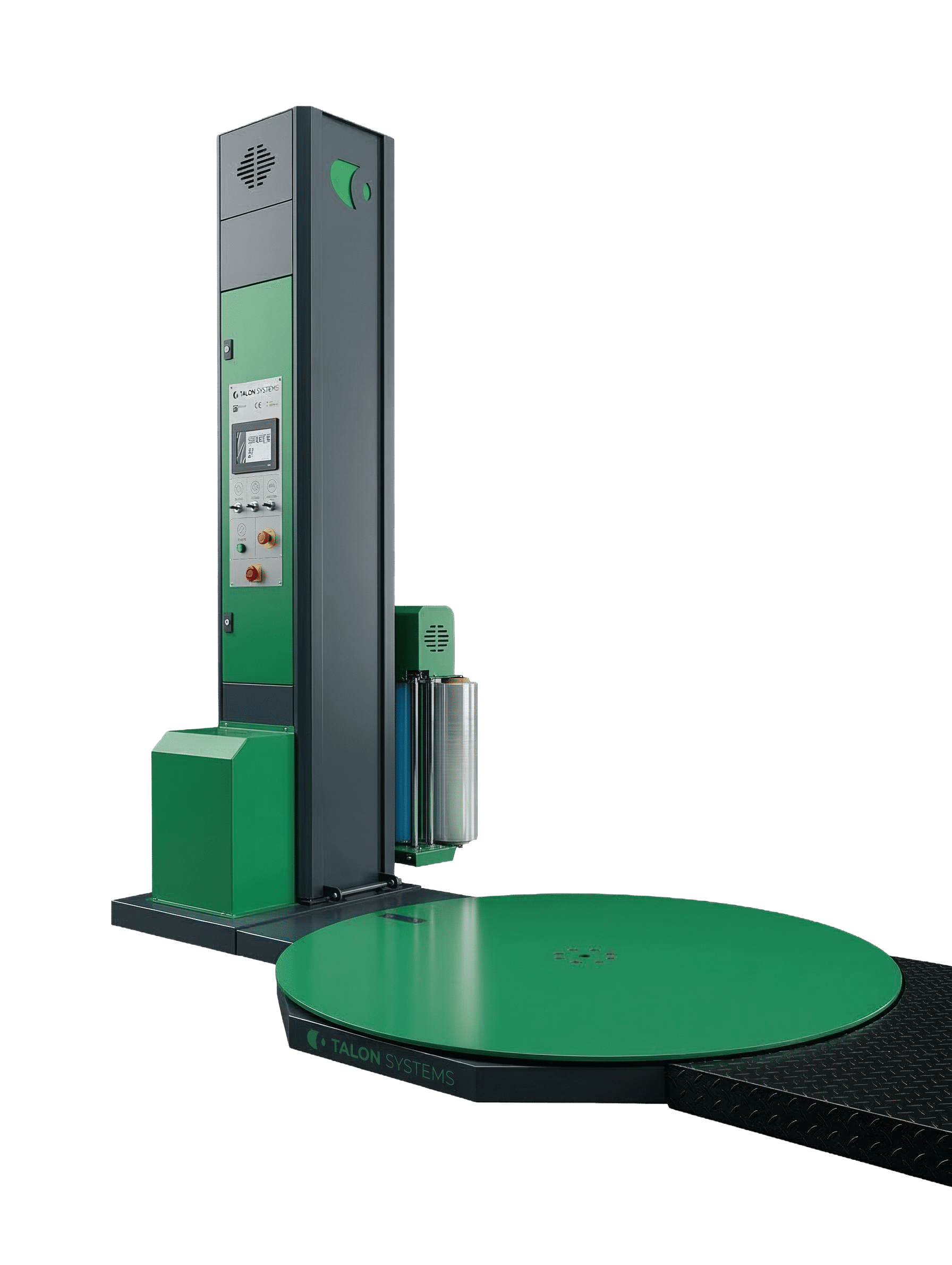

Wrapper Z1 Stretch Wrapper
Stretch Wrapping System

WRAPPER
Z1

Automated pallet stretch wrapper engineered to keep your packaged goods secure from production floor to final delivery. Smart tension control, intuitive interface, and a compact footprint — designed by operators who needed exactly this machine.

Scroll to Explore
Wrapper Z1 Features

Secure every pallet.
Every time.

The Wrapper Z1 completes the packaging cycle — everything from roll-fed sheeting to safely wrapped pallets, ready for transit. Built in-house, operated by people who know the job.

01

Pre-Stretch Film Carriage

Motorized pre-stretch system delivers consistent film tension across every wrap cycle, maximizing film efficiency and load stability.
02

Touchscreen HMI Control

The same human-first interface philosophy as the Traverse X-145 — clear, simple, and operator-friendly from day one.
03

Adjustable Wrap Parameters

Configure turntable speed, film carriage travel speed, and wrapping cycles to match your load type and packaging requirements.
04

Compact & Forklift-Ready

Designed for real factory floor constraints — compact footprint, forklift-accessible turntable, and straightforward installation.
Technical Specifications

Wrapper Z1 Specs

Capacity
Max Load Diameter
1,500 mm
Capacity
Max Load Height
2,400 mm
Performance
Turntable Speed
0–15 RPM
Film
Pre-Stretch Ratio
Up to 250%
Load
Max Load Weight
2,000 kg
Control
Interface
7" Color HMI
Electrical
Power Supply
380V / 50Hz
Compliance
Certification
CE Certified

Complete your packaging line.

Pair the Wrapper Z1 with the Traverse X-145 for a complete, integrated packaging solution from roll input to pallet-ready output.

About Talon Systems

Built by operators,
for operators.

Talon Systems was born from 35 years of hands-on mastery in the paper and cardboard industry — and over a decade of running the same types of machines we now build.

About Our Company

Talon Systems was born from 35 years of hands-on mastery in the paper and cardboard industry. Our journey began on the production floor, where we spent ten years operating the very types of machines we now build. This decade of direct experience taught us what technical specs alone couldn't: how paper actually behaves under pressure.

Today, we use that deep material knowledge to engineer superior mechanical solutions that eliminate common production bottlenecks. We don't just build equipment — we create a "human-first" manufacturing experience designed by people who have lived every challenge on the factory floor.

From high-precision cutting and sheeting to secure stretch-wrapping, we deliver integrated solutions that satisfy every stakeholder, from the operator to the end customer.

Engineering for Every Stakeholder

Driven by our history as traders and our experience as operators, we decided to engineer a better way forward. We combined our deep material knowledge with hands-on operational insight to produce machines that satisfy everyone in the chain.

We replaced cluttered, complex legacy systems with a human-first approach, creating an intuitive, operator-centered experience that prioritizes ease of use and maximum uptime.

Practical Tools for the Whole Process

We aren't stopping at one machine. We are building a suite of tools to cover the whole job — from our high-speed sheeters to the stretch-wrapping machines we use to keep paperboard safe during transit. Everything we develop is designed to solve a real problem we've faced ourselves.

1990

Entering the Paper Trade

Our journey began in the heart of the paper trade — serving printing houses and packaging manufacturers across international markets.
3 Countries

International Expansion

Over the decades, we operated in three different countries, mastering every nuance, functionality, and grade of paperboard available in the market.
10+ Years

On the Production Floor

We spent over a decade operating industrial machinery — identifying every mechanical bottleneck and operator frustration firsthand.
Today

Building the Future

Engineering a suite of integrated packaging solutions — from the TRAVERSE X-145 sheeter to the Wrapper Z1 — that solve real problems we've faced ourselves.
35
Years in the Industry
3
Countries Operated
10+
Years Running Machinery
24h
Installation Standard

Let's talk production.

Whether you're looking for a sheeter, a wrapper, or a complete end-to-end solution, our team is ready.

Our Products

Machines built from experience.

Two precision machines, one integrated workflow. From roll-fed sheeting to secure pallet wrapping — Talon Systems covers the complete packaging process.

Sheeter / Cutter — High Speed
Traverse X-145 Sheeter

TRAVERSE X-145

1,450mm max width · 180 m/min
High-speed rotary sheeter engineered for paper and paperboard. Precision cutting at production speeds, with an intuitive HMI and field-tested reliability. CE certified, Made in Turkey.
Explore Traverse X-145
Stretch Wrapper — Pallet
Wrapper Z1 Stretch Wrapper

WRAPPER Z1

Up to 2,000 kg load · Pre-stretch system
Automated pallet stretch wrapper with smart pre-stretch film carriage, adjustable wrap parameters, and the same operator-first HMI as the Traverse. CE certified, Made in Turkey.
Explore Wrapper Z1

Need both machines?

The Traverse X-145 and Wrapper Z1 are designed to work together — a complete packaging line from roll to ready-to-ship pallet.

Get in Touch

Let's talk about
your production.

Our engineering team is ready to help you find the right machine for your operation.

Contact Details

Reach us directly — our team responds quickly to all technical and commercial inquiries.

Manufactured In
Turkey · CE Certified

Send us a message

Tell us about your operation and requirements and we'll be in touch shortly.

✓
Message Sent!

Thank you for reaching out. Our team will be in touch with you shortly.
